AI Cam

Ai-1 : Your Robotic Visionary

Welcome to the ever-growing ecosystem of Yudu Robotics, where innovation and creativity continuously expand the boundaries of what's possible. The Ai-1 is not just an accessory, it's a game-changer that enhances the visual and interactive capabilities of every Yudu Robotics creation. From PeeCee, Roboki, Klaw-b, and Crawlee to Zing and beyond, Ai-1 seamlessly integrates into our expanding lineup, making each creation more dynamic, interactive, and alive. With Ai-1, the Yudu Robotics ecosystem continues to evolve, bringing even more possibilities to life.

Imagine a robot that does not just see its surroundings but truly understands and interacts with them. That is the power of Ai-1. Equipped with advanced visual processing, Ai-1 recognizes and responds to its environment, transforming any robot into something extraordinary. But that is only the beginning! Ai-1 comes packed with features that truly bring robots to life, like voice command recognition, real-time feedback on a vibrant display, and even its unique personality.

And there is more! With a ChatGPT-enabled speaker, Ai-1 can answer questions, crack jokes, and be the life of the party. It is like having a pocket-sized genius always ready to interact and entertain.

Whether you are building a smart home assistant, developing an educational tool, or just indulging in some robotic fun, Ai-1 turns every project into an exciting adventure. It is where cutting-edge technology meets boundless imagination, giving robots a voice, a personality, and a whole lot of charm. So get ready—Ai-1 is leading the way to a future where robots are not just machines, but companions, entertainers, and geniuses all rolled into one!

Ai-1 Anatomy :

Ai-1’s sleek design houses a variety of powerful components that bring your robotic creations to life. Here’s a closer look at the core features that make Ai-1 an indispensable part of any robotics project:

Microprocessor:

Model: ESP32-S3 N8R8.
Function: Provides robust processing power for advanced tasks, making Ai-1 capable of handling complex computations and real-time processing.

Camera Lens:

Resolution: 2-megapixel, 240x240 pixels.
Function: Serves as your robot's eyes, capturing visuals with precision and clarity.

Microphone:

Function: Picks up voice commands and environmental sounds, enabling real-time interactions and voice-based controls.

LiDar Sensor:

Function: Maps the environment and detects objects, enhancing navigation and spatial awareness. A critical component for autonomous movement and obstacle avoidance.

LEDs:

Function: Provide visual indicators and effects, adding personality to robots and signaling different statuses.

Display Screen:

Function: Shows real-time feedback, emotions, or data, making interactions more engaging and intuitive. It’s where your robot’s expressions and responses come to life.

Auxiliary Port:

Function: Provides power and is used for connecting to Yudu Robotics products.

USB-C Port:

Function: Provides power and is used for standalone functionality.

Memory Card Slot:

Function: Offers expandable storage for data, software, and more. Essential for saving and accessing large volumes of information.

Let's take a detailed look into the technical details of each of these components :

Component	Technical Details	Function
Microprocessor	Model: ESP32-S3 N8R8	Provides robust processing power for advanced tasks, enabling Ai-1 to handle complex real-time processing.
Camera Lens	Resolution: 2-megapixel, 240x240 pixels	Serves as the robot's eyes, capturing visuals with precision and clarity.
Microphone	MSM261S4030H0 MEMS Microphone	Picks up voice commands and environmental sounds, enabling real-time interactions and voice-based controls.
LiDar Sensor	511-VL53L0CXV0DH/1 (2 metre range)	Maps the environment and detects objects, enhancing navigation and spatial awareness for obstacle avoidance.
LEDs	1206 Package White LEDs	Provides visual indicators and effects, adding personality to robots and signaling different statuses.
Display Screen	65535 Colour TFT 1.3 inch	Shows real-time feedback, emotions, or data, making interactions more engaging and intuitive.
Aux Port	4 Pole 3.5 mm Jack	Provides power and is used for connecting to Yudu Robotics products.
USB-C Port	2.0 USB 16 Pin	Provides power and is used for standalone functionality.
Memory Card Slot	Micro SD Card Slot Only	Offers expandable storage for data, software, and more, essential for saving and accessing information.

(Add a detailed diagram with labeled parts of Ai-1 here.)

Core Capabilities

Visual Processing

Ai-1’s powerful 2-megapixel camera isn't just for taking snapshots, it's designed to recognize objects, track movements, and analyze environments with precision. This visual prowess allows robots to see their surroundings, making interactions more dynamic and context-aware.

Environmental Awareness

The built-in LiDar Sensor adds an extra layer of intelligence by mapping surroundings and detecting objects in real time. This capability ensures robots navigate their environment with the precision of a seasoned explorer, avoiding obstacles and interacting more naturally.

Real-time Feedback

Ai-1’s vibrant display screen provides immediate visual feedback, making interactions more intuitive and satisfying. Whether it’s showing emotions, displaying data, or guiding through tasks, this feature keeps engagement levels high.

Language model

With its language model-enabled speaker, Ai-1 can engage in two-way conversations! Whether it’s responding to inquiries, providing instructions, or sharing a light-hearted joke, Ai-1’s interactive dialogue capabilities make it an entertaining companion for any robotic project.

(Image of Ai-1 Integrated with any of the products and performing an action)

Expansion of Yudu Robotics Product Ecosystem

Ai-1 is a versatile accessory that seamlessly integrates with a range of Yudu Robotics products, enhancing their capabilities and functionality. It is compatible with PeeCee, Roboki, Zing, Crawlee, and Klaw-b, making it an essential addition to your robotics toolkit.

The following are the advantages that make Ai-1 so indispensable:

Seamless Connectivity

Ai-1 is designed to work hand-in-hand with Yudu Robotics’ entire lineup. Whether it’s PeeCee, Roboki, Klaw-b, Crawlee, or Zing, Ai-1 connects effortlessly via wireless Bluetooth, instantly boosting the capabilities of each robot.

Enhancing Robotics

Imagine PeeCee not just computing, but interacting; Zing not just moving, but responding to voice commands. Ai-1 transforms these robots from simple machines into interactive companions. Each Yudu Robotics product becomes smarter, more aware, and way more fun with Ai-1 onboard.

Customization and Flexibility

Ai-1 offers a unique level of customization, allowing users to switch between different Yudu Robotics products seamlessly. This adaptability means that Ai-1 can be reconfigured to take on various roles depending on the project requirements. Whether integrating with the Mini Humanoid robot Zing or the Hexapod Crawlee, users can easily tailor the Ai-1's capabilities to meet specific needs, enhancing the overall functionality of the robotic system.

Powering up with AI

Integrating Ai-1 enhances the performance of Yudu Robotics products while unlocking creative possibilities. Acting as the brain of operations, Ai-1 makes interactions intelligent and engaging. With the built-in language model, users can enjoy advanced voice recognition, enabling effortless communication with their robotic companions. This fusion of AI-powered features elevates the user experience, making robotics more intuitive and interactive.

(Image of Ai-1 Integrated with any of the products and performing an action)

Programming with Plode App

Ai-1 is not just about impressive hardware; it is also about smart software integration! With seamless connectivity to the PLODE app, Ai-1 takes user interaction and functionality to the next level.

Imagine having a powerful interface right at your fingertips! The PLODE app allows users to customize Ai-1's settings, access its features, and monitor its performance all from their smartphone or tablet. Whether it’s adjusting camera angles, setting up alerts, or reviewing recorded footage, the PLODE app makes managing Ai-1 a breeze.

The integration with PLODE provides several exciting features:

Real-time Monitoring : View live feeds from Ai-1 directly through the app, so you can check in on your home or classroom anytime, anywhere.
Custom Alerts : Set up personalized notifications based on motion detection or specific events. Want to know when the kids get home from school? Ai-1 has you covered!
User-Friendly Interface : With intuitive controls and easy navigation, even tech novices can harness the full potential of Ai-1 without any hassle.
Data Management : Store and manage recorded footage efficiently within the PLODE app, ensuring that important moments are saved and easily accessible.

Ai-1 Integration with Yudu Products

Connecting and training Ai-1 with Your Robotics Companions is now easy: Unlock the full potential of your Yudu Robotics creations by seamlessly integrating Ai-1 with your favorite devices.

Follow these fun and straightforward steps to connect and train Ai-1 with PeeCee, Roboki, Zing, Crawlee, and Klaw-b.

PeeCee integrated with Ai-1

A) PeeCee + Ai-1

Open the PLODE App: Launch the PLODE app on your smartphone or tablet.
Turn on Bluetooth: Ensure that Bluetooth is enabled on your device.
Connect with PeeCee: Select PeeCee from the list of available devices.
Connect Ai-1: Use the Auxiliary Connector to link the Ai-1 to PeeCee, which will also power up the Ai-1.
Train Ai-1:

Navigate to App Mode in the PLODE app.
Select Hardware to begin training.
Choose between Camera and Speech options.
Camera Training: Teach Ai-1 to recognize colors and adjust the RGB threshold, and train it to identify faces with personalized names.
Speech Training: Teach Ai-1 to recognize voices, save commands, and customize the wake-up phrase.

(Show Plode integration with PeeCee and Ai-1)

Roboki integrated with Ai-1

B) Roboki + Ai-1

Open the PLODE App: Start by launching the PLODE app.
Turn on Bluetooth: Ensure Bluetooth is enabled for connectivity.
Connect with Roboki: Select Roboki from the device list.
Connect Ai-1: Use the Auxiliary Connector to power up and link Ai-1 to Roboki.
Train Ai-1:

Go to App Mode and select Hardware.
Choose between Camera and Speech.
Camera Training: Train Ai-1 to recognize colors and faces.
Speech Training: Customize the wake-up command and train the Ai-1 with various voices.

(Show Plode integration with Roboki and Ai-1)

Zing integrated with Ai-1

C) Zing + Ai-1

Open the PLODE App: Launch the app to start.
Turn on Bluetooth: Activate Bluetooth on your device.
Connect with Zing: Select Zing from the list of devices.
Connect Ai-1: Use the Auxiliary Connector to link Ai-1 with Zing, powering it up instantly.
Train Ai-1:

Access App Mode and select Hardware.
Choose between Camera and Speech.
Camera Training: Adjust the RGB threshold and train Ai-1 to recognize faces.
Speech Training: Teach Ai-1 to recognize different voices and customize commands.

(Show Plode integration with Zing and Ai-1)

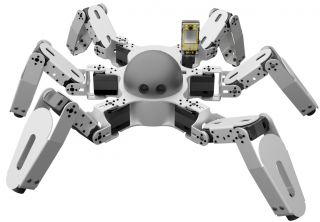

Crawl-e integrated with Ai-1

D) Crawlee + Ai-1

Open the PLODE App: Open the PLODE app on your device.
Turn on Bluetooth: Ensure Bluetooth is on.
Connect with Crawlee: Select Crawlee from the available devices.
Connect Ai-1: Use the Auxiliary Connector to power and connect Ai-1 to Crawlee.
Train Ai-1:

Select App Mode and navigate to Hardware.
Choose Camera or Speech.
Camera Training: Train Ai-1 on color recognition and face identification.
Speech Training: Customize the wake-up phrase and train Ai-1 to recognize different voices.

(Show Plode integration with Crawlee and Ai-1)

E) Klaw-b + Ai-1

Open the PLODE App: Begin by opening the PLODE app.
Turn on Bluetooth: Enable Bluetooth on your device.
Connect with Klaw-b: Select Klaw-b from the list.
Connect Ai-1: Use the Auxiliary Connector to power and connect Ai-1 to Klaw-b.
Train Ai-1:

Access App Mode and choose Hardware.
Select Camera or Speech.
Camera Training: Teach Ai-1 to recognize colors and faces.
Speech Training: Customize the wake-up command and train the Ai-1 with various voices.

(Show Plode integration with Klaw-b and Ai-1)

By integrating with the PLODE app, Ai-1 becomes an even more valuable tool for users, enhancing both its capabilities and ease of use. Whether you're keeping an eye on your home, creating engaging lessons, or exploring new robotics projects, the PLODE app ensures that Ai-1 is always just a tap away!

(Show Plode integration with different products and Ai-1)

Standalone Functionality

Ai-1 also shines all on its own! Thanks to its USB-C connection, you can unleash Ai-1’s magic in a variety of exciting ways without needing a robotic partner.

Imagine transforming your home into a smart fortress with an Ai-1 as a security camera! With its sharp 2-megapixel camera and advanced visual processing, the Ai-1 can monitor your space and detect movement like a pro. It can recognize familiar faces, so when Aunt Betty shows up, you’ll get a friendly alert instead of a panic! Plus, if it detects any unexpected visitors, you’ll receive instant notifications on your device, giving you peace of mind whether you’re at home or away.

But wait, there’s more! Ever wanted a doorbell camera that doubles as your friendly neighborhood assistant? Ai-1 can do just that! It provides a crystal-clear view of who’s at the door, and with its built-in microphone and speaker, you can chat with visitors as if you were right there. “Hello, delivery person! Just leave the package by the door!” No more awkward moments when you’re caught in your pajamas or missing a delivery!

In educational settings, Ai-1 can become an interactive learning buddy, capturing student presentations or experiments and providing instant feedback on its vibrant display. Imagine students presenting their projects while Ai-1 records the action, displaying real-time data or even showing emojis to react to their performance. It’s perfect for turning lessons into engaging tech adventures, making learning fun and interactive.

With its ability to operate independently, Ai-1 opens up a world of possibilities. Whether it’s securing your home, enhancing communication with visitors, or bringing creativity to the classroom, this little powerhouse proves it’s not just a gadget, it’s a versatile companion ready to take on the world!

Connecting and Using Ai-1 as a Standalone Product (with open source programming)

To unlock Ai-1’s potential without a robotic partner, follow these steps to connect and use it independently:

Power Up Ai-1:
- Connect the Ai-1 to a power source using a USB-C cable. Once connected, Ai-1 powers up and is ready for action!
Programming Ai-1:
- It can be fully programmable using any open-source software. You can use platforms like Arduino IDE, MicroPython, or other compatible environments to code and customize Ai-1's functionalities.
- With a bit of coding, you can program Ai-1 to recognize faces, respond to voice commands, or even perform automated tasks like motion detection.
Customizing Ai-1's Features:
- Using the open-source platform of your choice, you can modify Ai-1’s settings, adjust camera parameters, and create custom behavior patterns. Whether you're a coding novice or an experienced programmer, the possibilities are endless!

(Show Ai-1 being used as a stand-alone product)

Getting Started with Ai-1

Unboxing

Package Contents: Carefully unpack the Ai-1 kit, ensuring all components are present. The package typically includes the Ai-1, USB-C cable, and any additional accessories like skins.
Component Identification: Familiarize yourself with the different components and their functions.

Software Installation

Plode App: Download and install the Plode app on your smartphone, tablet, or computer. This app will serve as the primary interface for controlling and programming the Ai-1.

Basic Functionality

Power On: Connect the Ai-1 to a power source using the USB-C cable or switch it on via the power button.
App Connection: Pair the Ai-1 with the Plode app using Wi-Fi or Bluetooth.
Explore Interface: Navigate through the Plode app’s interface to access AI and voice command modes, programming environments, and more.

Safety Guidelines and Handling

General Safety Precautions

Proper Handling: Handle the Ai-1 with care, avoiding excessive force on the camera lens and display screen.
Safe Environment: Use the Ai-1 in a clean, dry, and well-ventilated area.
Electrical Safety: Ensure proper connection of power sources and avoid overloading outlets.

FAQs

Q1) Can I use Ai-1 as a standalone product?

Yes! Ai-1 can operate independently when connected via USB-C, making it suitable for applications like a security camera or a doorbell camera, as well as educational tools. (Refer to Standalone Functionality )

Q2) What features are included in the PLODE app?

The PLODE app provides a comprehensive interface for managing Ai-1. Additionally, the PLODE app features adaptable coding capabilities, enabling users to train Ai-1 with custom commands and functionalities easily. (Refer to Programming with Plode App)

Q3) How can I customize Ai-1's features?

Using open-source platforms, users can modify settings, adjust camera parameters, and create custom behavior patterns tailored to their project needs.

Q4) How do I train Ai-1?

Users can train Ai-1 by navigating to the App Mode in the PLODE app and selecting between Camera and Speech options. This includes teaching Ai-1 to recognize colors, faces, and voices, and customizing wake-up phrases.
